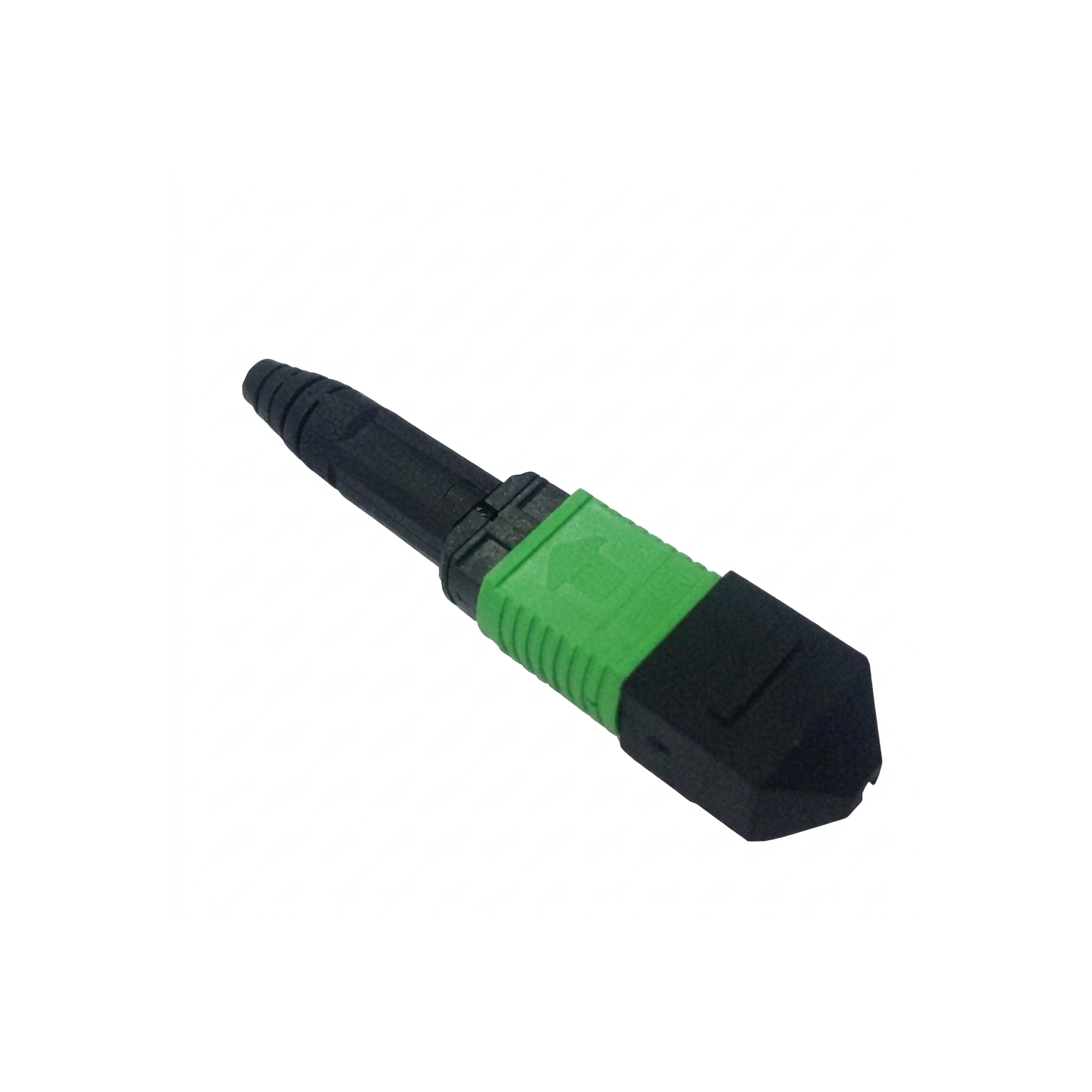

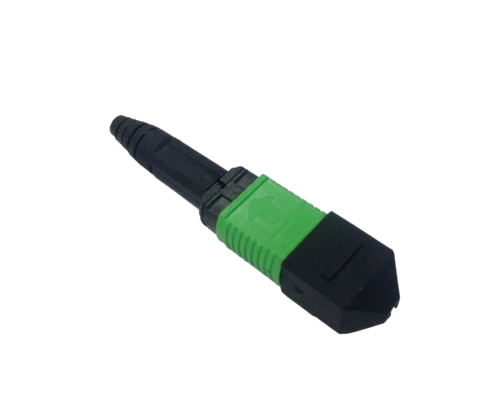

MPO Connector
MPO CONNECOTR FOR RIBBON CABLE
MPO CONNECOTR FOR ROUND CABLE(SHORT TYPE)
MPO CONNECOTR FOR ROUND CABLE(STANDARD TYPE)
Description:
MPO connectors are super high-density small form factor connector. BAYCOM’s special design for slot rear body can make assembly easier.
MPO Connector’s housing are available in many colors such as Green(SingleMode), Beige(MultiMode OM2), Aqua (MultiMode OM3) and Yellow(SingleMode Low Loss). Ferrule available in 4, 8, 12, 24 and 48 fiber hole configuration.
Ferrules are available for SM Standard, SM Low Loss, MM Standard and MM Low Loss. Boots are available for Ribbon bare fiber, Ribbon jacket cable, Round jacket cable.
Specifications and Applications
| Features | Application |
|---|---|
| High performance in IL&RL | Communication |
| Environmentally stable and reliable | Data center |
| Compact design, mass terminate 8, 12, 24 | Active optical cable |
| Easier termination | 10G/40G/100G networks |
| Suitable for different type cable | Parallel interconnection |
