MPO Standard Adapter
MPO ADAPTER, SIMPLEX, ROTATED FLANGE, PLASTIC

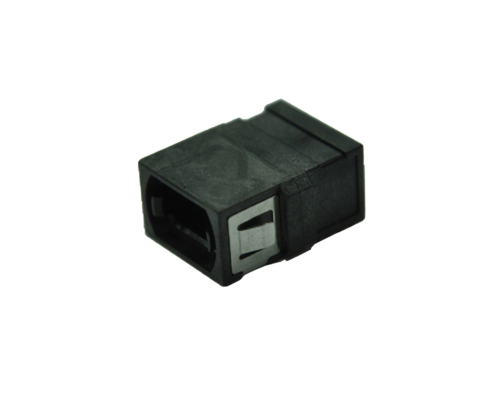

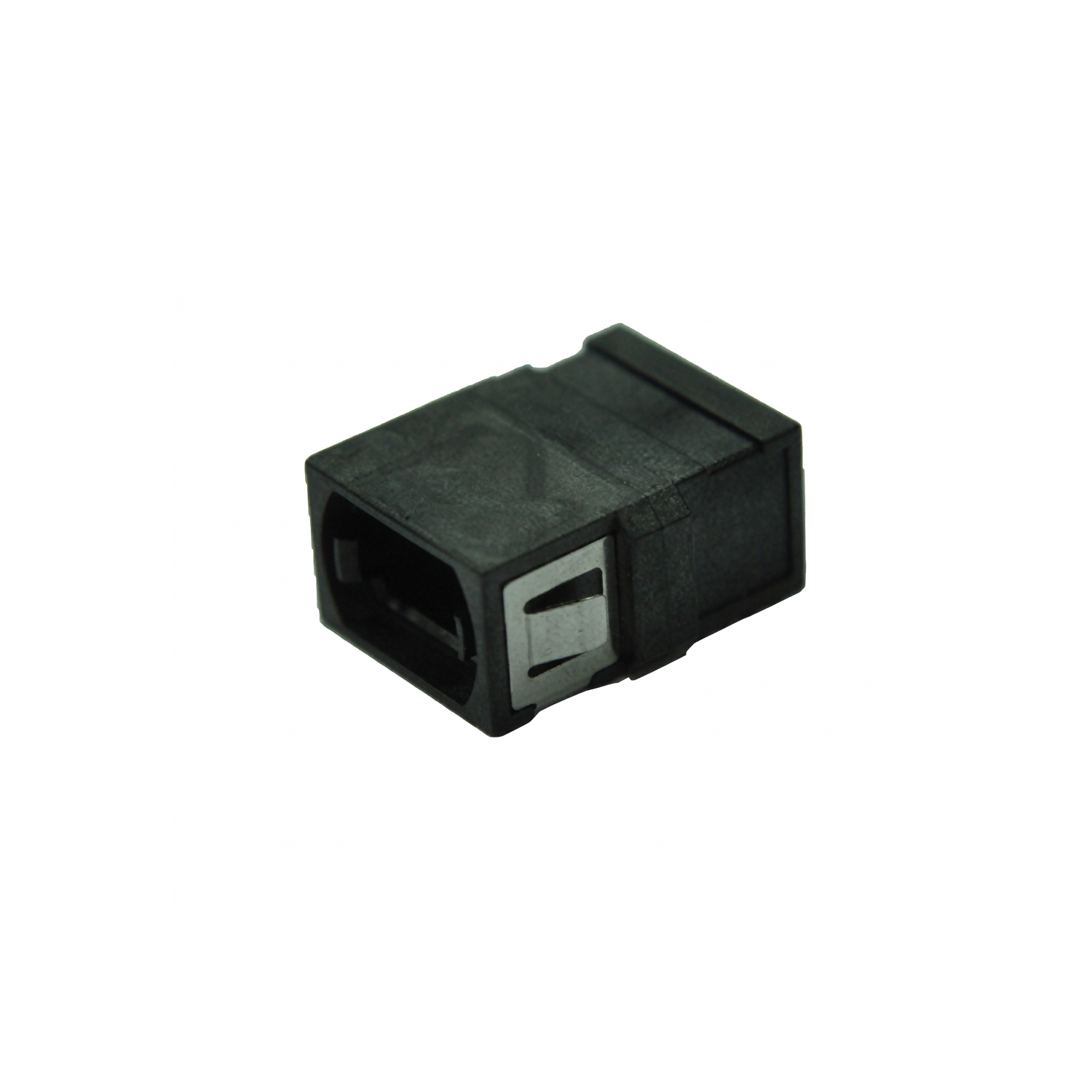

MPO ADAPTER, SIMPLEX, FLANGELESS, PLASTIC

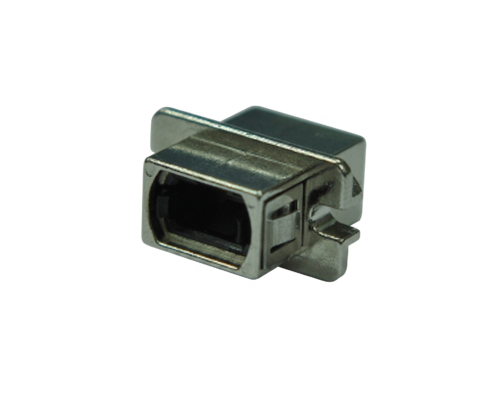

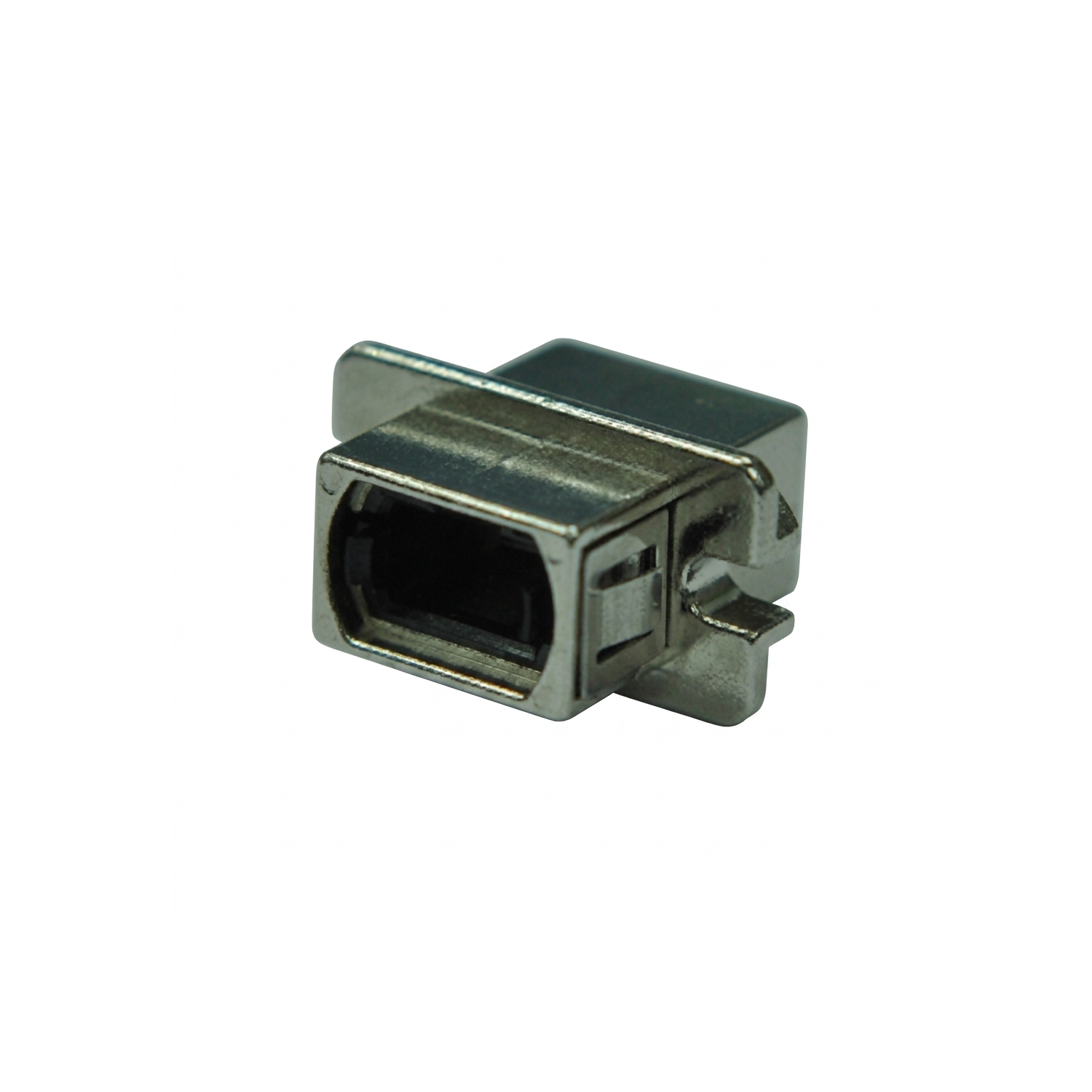

MPO ADAPTER, SIMPLEX, FLANGE, DIE CAST

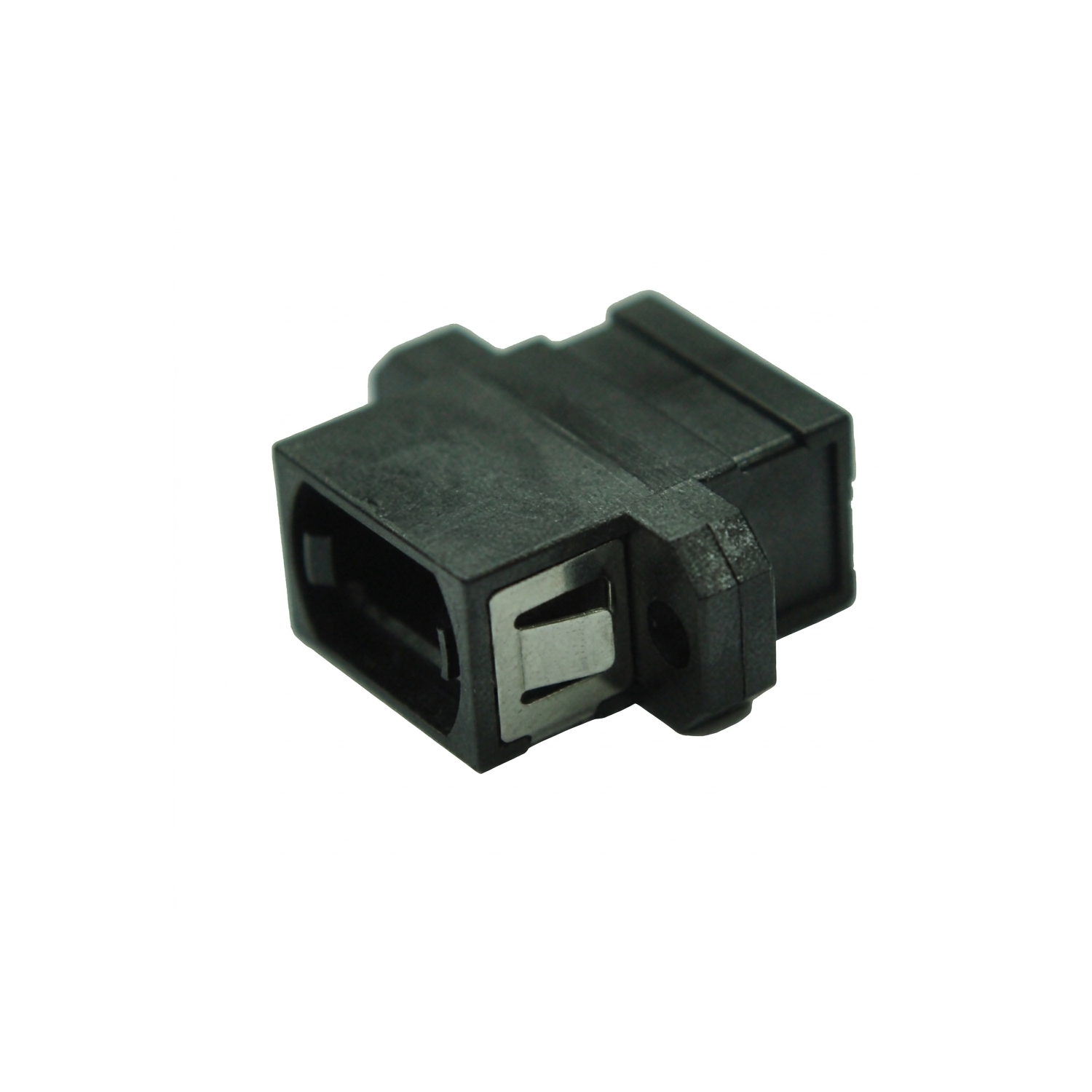

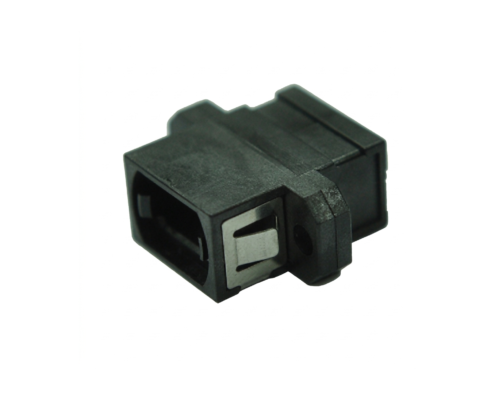

MPO ADAPTER, SIMPLEX, STANDARD FLANGE, PLASTIC
MPO ADAPTER, SIMPLEX, STANDARD FLANGE, PLASTIC(KEY UP)
Description:
BAYCOM MPO adapters made in both die-cast and industry compliant to insure intermateability with industry standard assemblies and connectors. Available with various flange styles, BAYCOM MPO adapters are able to meet the challenges and mechanical requirements of highly dense system designs while maintaining industry standard footprints.
An optional innovative feature of BAYCOM MPO adapters is the fully automatic shutter. This internal shutter mechanism, located on both sides of the adapter, requires no manual actuation to receive the benefit of eye safety by simply inserting the MPO connector. The unique stepped design of the shutter prevents the ferrule end-face from making contact with the shutter while mating the connector.
Specifications and Applications
| Features | Application |
|---|---|
| Available in multiple flange styles to meet panel design requirements | Communication |
| Optional, internal, fully automatic shutter mechanisms on both sides of the adapter to assist in eye safety requirements | Data center |
| Shutter requires no manual actuation Accepts industry standard MPO/MTP interfacesCompact design, mass terminate 8, 12, 24 | Active optical cable |
| Flange on die-cast version completely covers panel cutout | 10G/40G/100G networks |
| Meet IEC 1754-7 and TIA/EIA FOCIS 5 standards | Parallel interconnection |
