Fiber Interconnect

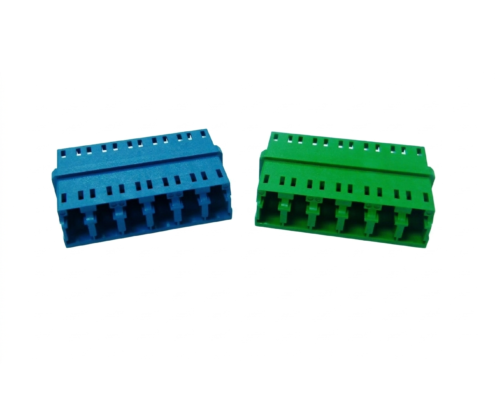

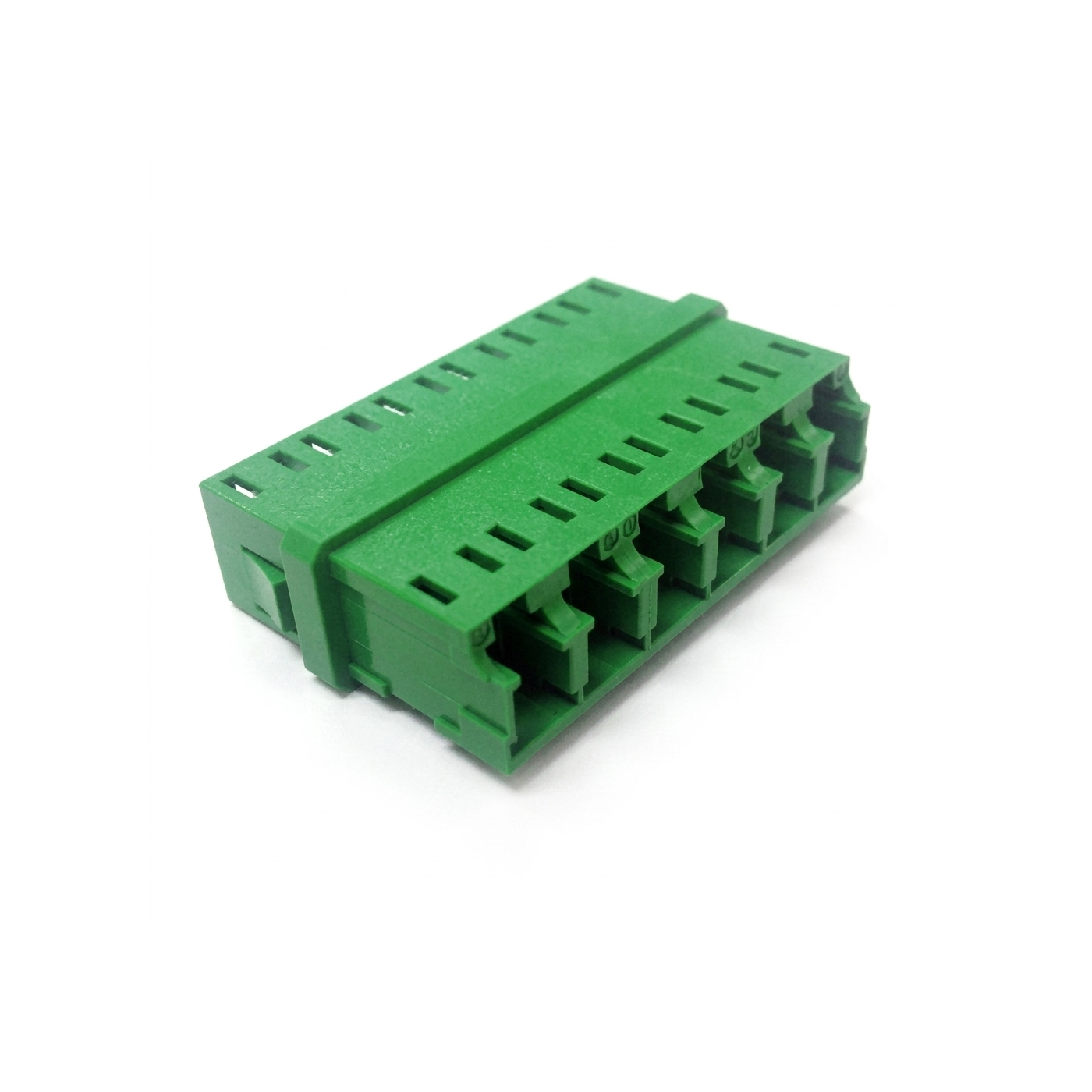

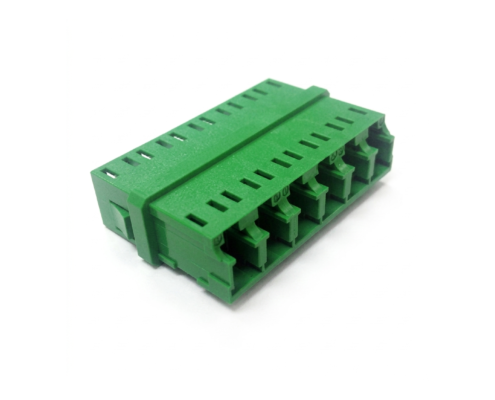

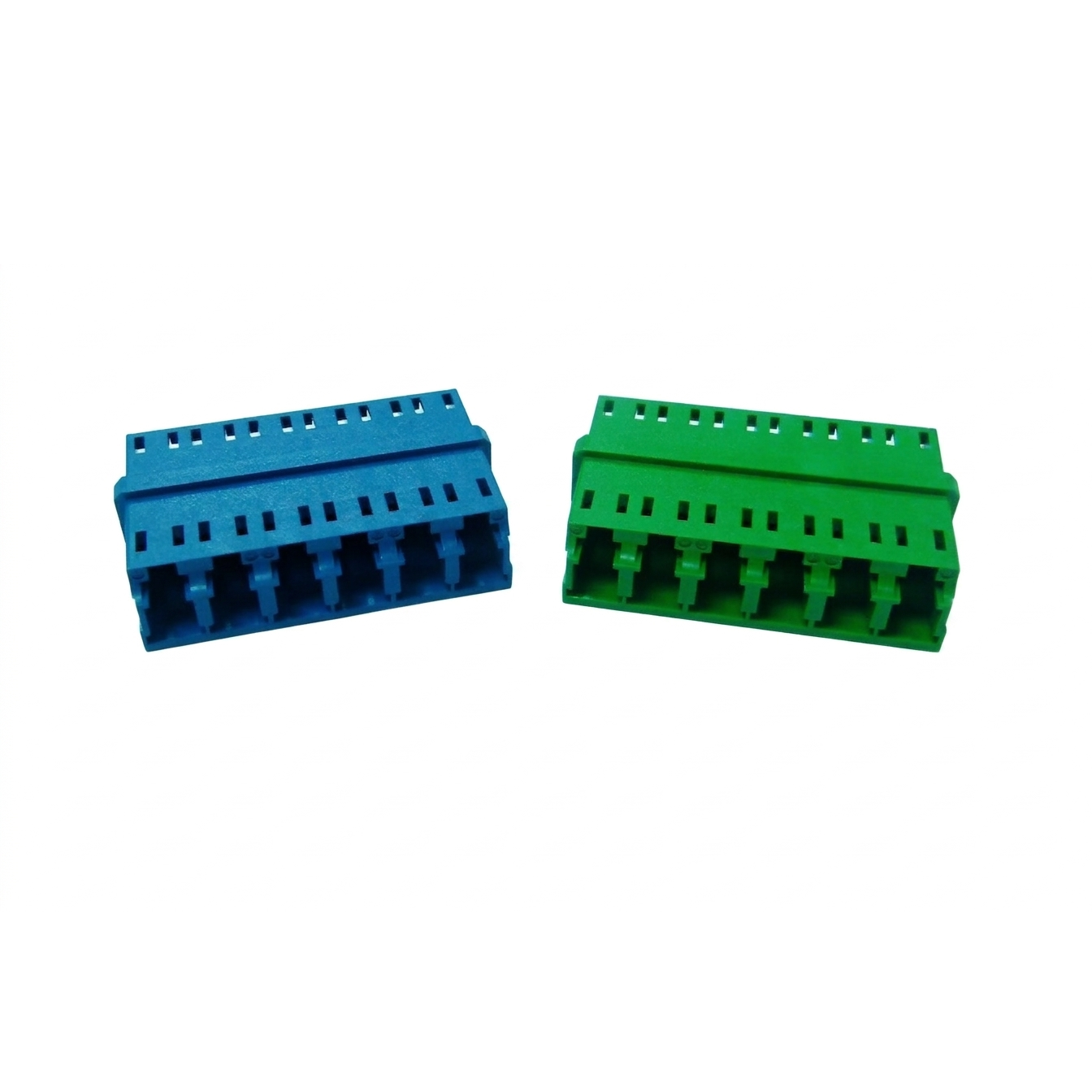

LC 6-Port Adapter
Singlemode Blue
Singlemode APC Green
Multimode OM1/OM2 Beige
Multimode OM3 Aqua
Multimode OM4 Magenta
Description:
Designed for high-density applications, the quad LC adapter from Baycom provides a 6-position LC adapter solution. 6 LC ports are provided in 1 adapter, allowing for multiple LC connectors to be mated within the adapter. Connection options include 6 simplex LC connectors or 3 duplex LC connectors.
Besides LC standard adapter, Baycom Quad adapter also provide Auto shutter adpter and internal shutter adapter. Baycom Auto shutter and internal shutter are designed to cover the entire coupler hole. These unique adapters virtually eliminate eye exposure to lasers and provide maximum protection from dust and contamination.
Specifications and Applications
| Features | Application |
|---|---|
| One-piece body / compact design | Telecommunication networks |
| Square cross-section on duplex | Local Area Networks (LANs) |
| Fit standard SC adapter cutout | Data processing networks |
| Device terminations | |
| Cable television |
